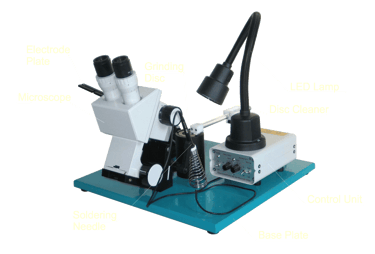

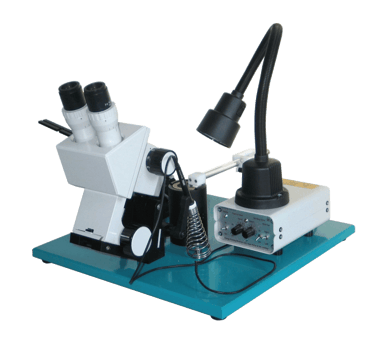

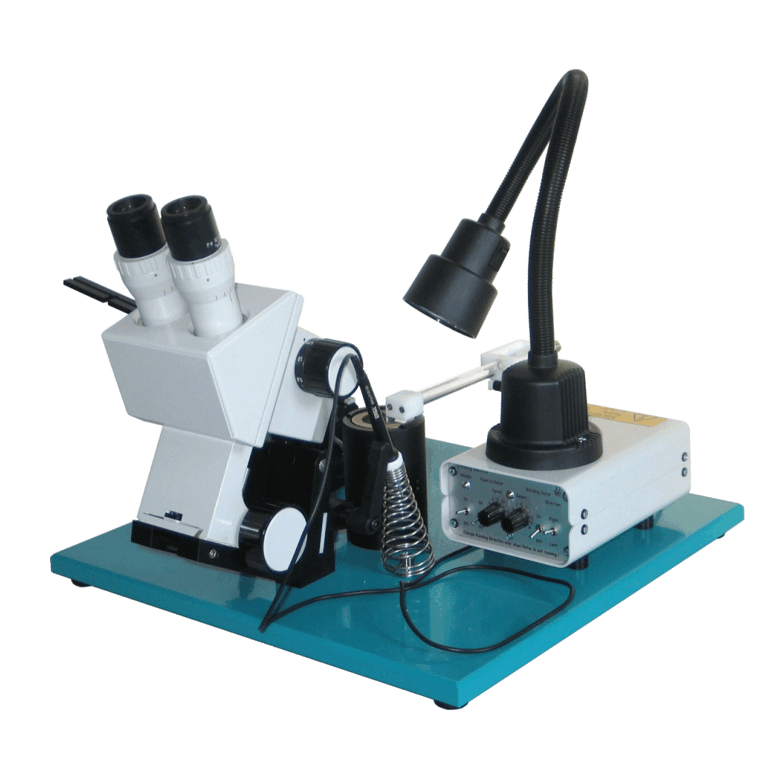

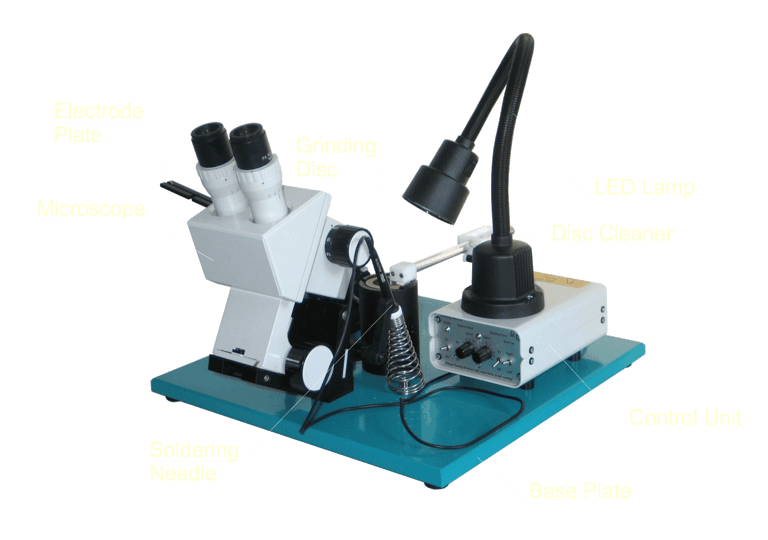

The Tip Grinding Machine Model DIECKL-ST serves for the precisely controlled production of fine microelectrode tips from tapered fiber electrodes prepulled with the Electrode Tip Puller Model ETP (also manufactured by Thomas RECORDING GmbH) and quartz glass/metal fiber raw material. Fiber electrodes prepared with the Electrode Tip Puller Model ETP and the Tip Grinding Machine DIECKL-ST can be used either in single electrode experiments or in conjunction with the Electrode Manipulator Models “Eckhorn Matrix”, “Mini Matrix” or “Thomas Matrix” for state of the art multielectrode experiments successfully employed in many electrophysiological laboratories around the world (Mountcastle et al., 1991; Eckhorn and Thomas, 1993). Furthermore these electrode fibers can be used for recording experiments in electrochemical applications.

Product Description

Key Features

• Motorized rotating grinding disc

• Motorized rotating electrode fiber holder

• Grinding disc rotation direction selectable

• Bright LED lamp for electrode tip inspection during grinding process

• Microscope for electrode tip inspection during grinding process

• Electrode fiber manipulator for precise tip angle control during tip grinding

• Durable diamond grinding disc

• Heavy base plate for safe device operation

• No runout of the polishing wheel thanks to precise mechanical design

• Permits accurate and reliable grinding of microelectrode fibers

Article number: AN000292
