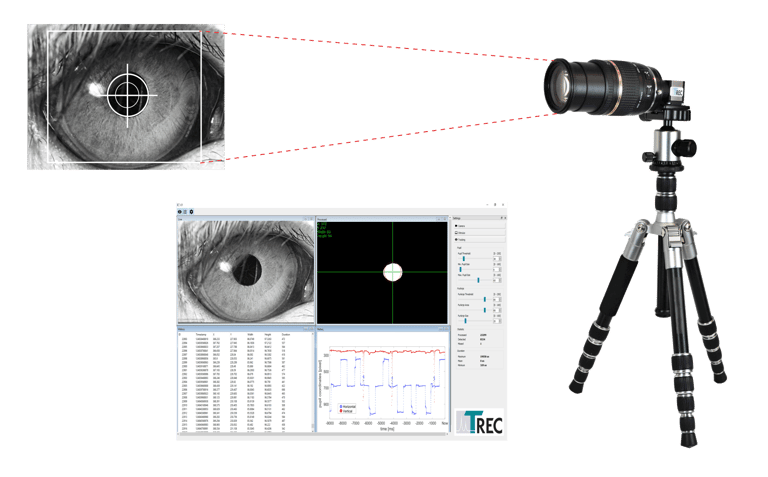

The video camera based Eye Tracking System Thomas Oculus Motus research stationary (TOM rs) is one of the most precise and versatile eye tracking system presently available on the market.

The TOM rs allows to freely adjust the temporal and spatial resolution, e.g. 2298Hz (384x192px)…200Hz (Full HD). The TOM rs is a very flexible and customizable eye tracker, with multiple mounting options and interchangeable lenses. The TOM rs eye tracker software is available for almost all popular computer operating systems and allows clients to run the software under Microsoft Windows, Linux and Macintosh operating systems.

The TOM rs system is a video camera based, plug-and-play device and therefore easy to install. The TOM rs series is accurate and reliable. The system utilizes special algorithms for efficient operation and superior results, e.g. by automatically compensating small head movements when performing a measurement with limited or no head stabilization. This is without compromising speed – sample rates of up to 2500Hz and high spatial resolutions are yielded. The TOM rs can be used across a wide range of species (e.g. humans, non-human primates, rats, mice, etc.) and can be customized to your special requirements. Please do not hesitate to contact us!

Product Description

Key Features

• Adjustable framerate up to 2500Hz

• Precision up to 0.003°

• Accuracy up to 0.03°

• Working distance 25-300cm

• XY-range gaze: app. 30°

• Automatic gaze compensation for head unrestrained measurements

• IR-Illumination unit

• Eye Tracer Software for Windows, Linux, Mac OS

• LAN-Interface to stimulus computer system

• Analog output of gaze and pupil data

• Modular system

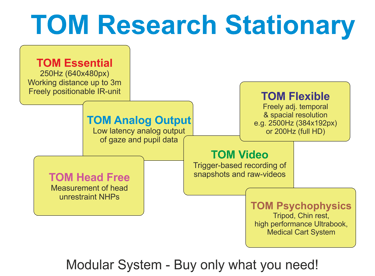

Modular Eye Tracking System

The TOM System is a modular eye tracking system that can be easily adapted to the individual requirements of our customers. You can upgrade the modules at any time to adapt the system to changing requirements. We offer a basic system at a low entry-level price, and additional equipment can be retrofitted at any time for an extra charge.

TOM Essential

basic eye tracking system

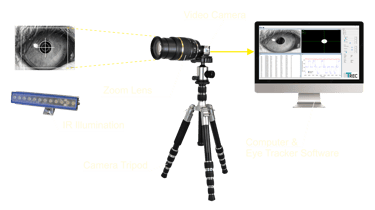

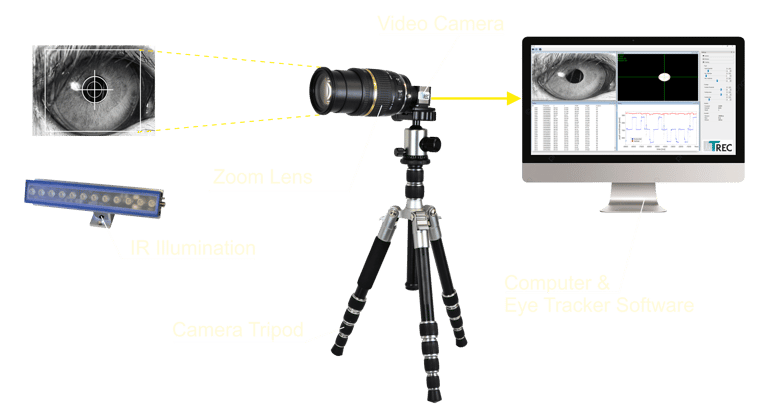

The TOM Essential is a basic eye tracking system with a frame rate of up to 250 Hz (640 480 px.). The system consists of a high-speed video camera, a table camera holder, an infrared illumination unit, a preconfigured personal computer in a 19" housing with the latest Microsoft Windows operating system, and the preinstalled TOM eye tracker application software. The TOM essential eye tracking system has all the components needed to track the eye movements of a nonhuman primate. The system can be expanded at any time with additional modules, such as an analog data output.

Article number: AN001565

TOM Flexible

high-speed upgrade for TOM Essential

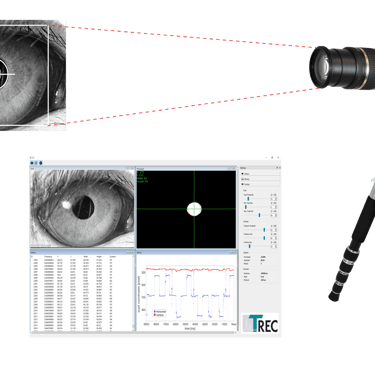

TOM Flexible is a high-speed upgrade for the TOM Essential eye tracking software. TOM Flexible offers a freely adjustable framerate between 2500Hz @ 384x192px and 200Hz @ Full-HD resolution to optimize data quality. There is no additional hardware upgrade necessary.

Article number: AN001566

TOM Analog Output

analog signal output for TOM eye tracking system

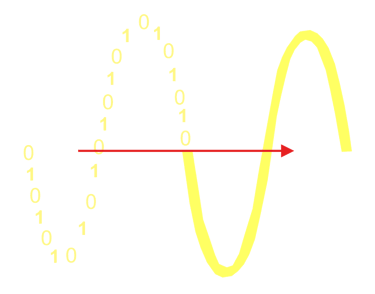

The TOM Analog Output offers a low latency analog voltage output of digital gaze and pupil data. The TOM Analog Output consists of an D/A-coverter  personal computer PCI express insert card and a connection cable with BNC connectors for each analog value.

Article number: AN001569

TOM Video

video recording upgrade for TOM eye tracking system

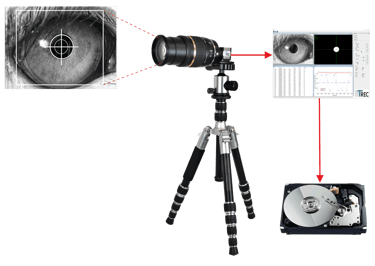

The TOM Video upgrade for the eye tracking system software offers trigger-based recording of snapshots and raw videos of the detected pupil with the current camera resolution and framerate for event related offline analysis.

Article number: AN001567

TOM Head Free

eye tracking for head unrestraint NHPs

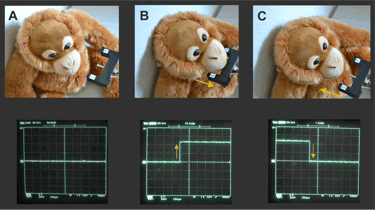

The TOM Head Free unit is an upgrade for the TOM low latency analog voltage output of gaze and pupil data. The TOM Analog Output personal computer PCI express insert card is used to connect the TOM Head Free unit. This unit consists of a sipper tube unit with mouthpiece, sipper tube and integrated electronic detector. Picture omn the left sid shows: (A) monkey is looking elsewhere in the room but not on the stimulus (TTL signal is 0V), (B) monkey is looking at the stimulus while beeing rewarded (TTL signal 5V), (C) monkey removes the mouth from the sipper tube (TTL signal is 0V). Eye tracking data is valid as long as the TTL signal is high (5V).

Article number: AN001569

TOM Psychophysics

TOM eye tracking system

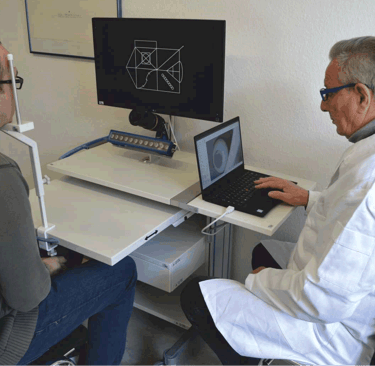

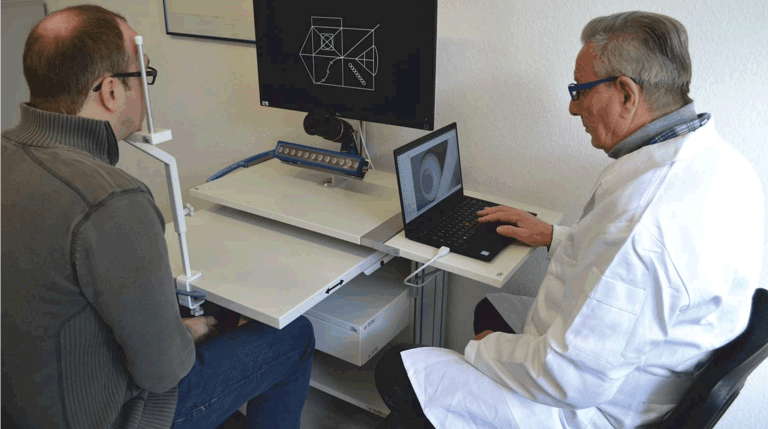

The TOM Psychophysics is intended to be used for psychophysical applications with helathy human subjects. The system consists of a camera stand, Chin rest and high performance Ultrabook with pre-installed eye tracking software, which allows great mobility between sessions by setting up the system within minutes. The system is available in various configurations. Please contact us so that we can put together a customized setup for you.

Article number: on request
